XLR Technical Specifications:
- XX Series
- Connection Type: XLR
- Gender: NC3MXX (male), NC3FXX (female)
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
XLR Technical Specifications:
- XX Series
- Connection Type: XLR
- Gender: NC3MXX (male), NC3FXX (female)
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
XLR Technical Specifications:
- XX Series
- Connection Type: XLR
- Gender: NC3MXX (male), NC3FXX (female)
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V

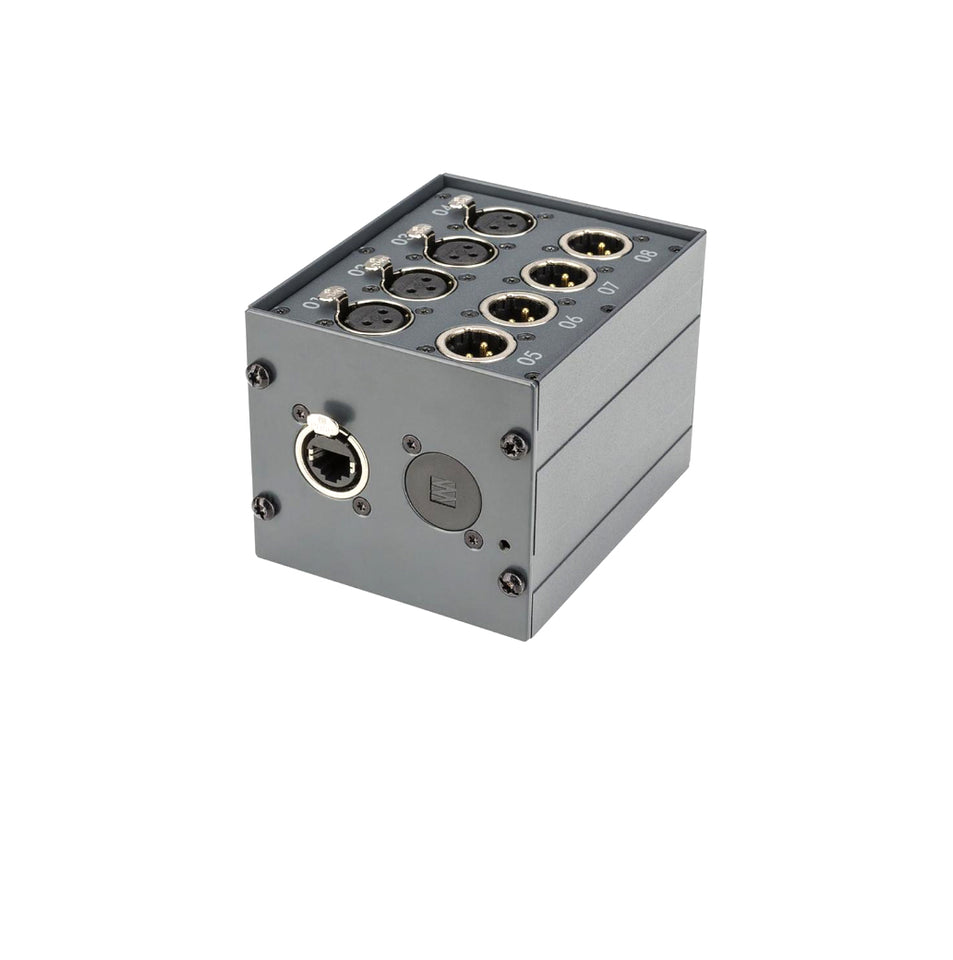

4 Channel Parallel Stagebox
CatLink Stagebox
This CAT based stagebox offers the integrator and live production professional the ability to have a combination of send and return signals down a single shielded CAT cable in a compact and discrete form factor.
This system is ideal as a discrete sub stagebox or for transporting audio, AES/EBU or DMX over long distance using cheap shielded CAT cable and can be used with existing CAT link systems that adhere to the below pinout.
Note: Shielded CAT cables must be used for proper operation and phantom power.
| RJ45 Pinout | Channel |
| 1 / 2 | Channel 3 |
| 3 / 6 | Channel 2 |
| 4 / 5 | Channel 1 |
| 7 / 8 | Channel 4 |
